Stig Ingamansson’s Noise Control: Principles and Practice

B7 – Sound from Vibrating Plates – Resonance

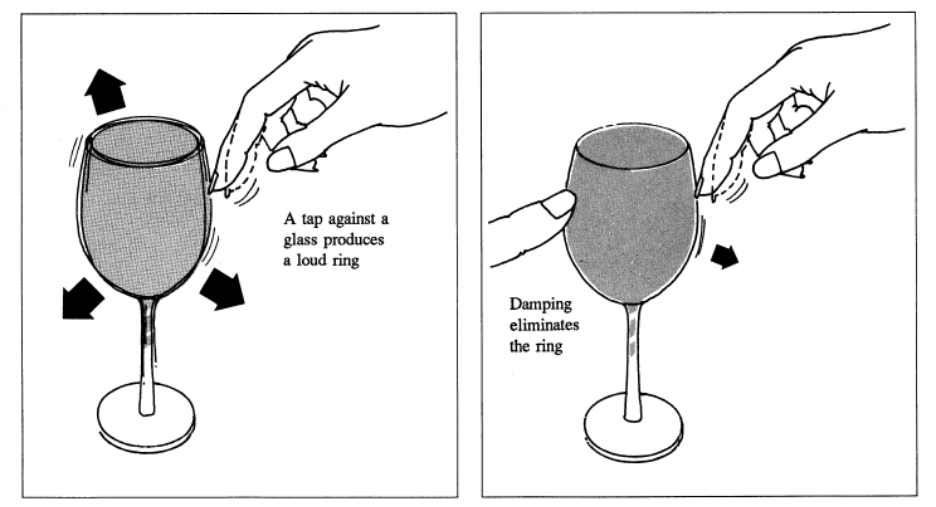

RESONANCE AMPLIFIES NOISE BUT IT CAN BE DAMPED

Resonance greatly increases noise from a vibrating plate, but it can be suppressed or prevented by damping the plate.  It may often be sufficient to damp only part of the surface, and, in some rare cases, damping of a single point is effective.

Principle

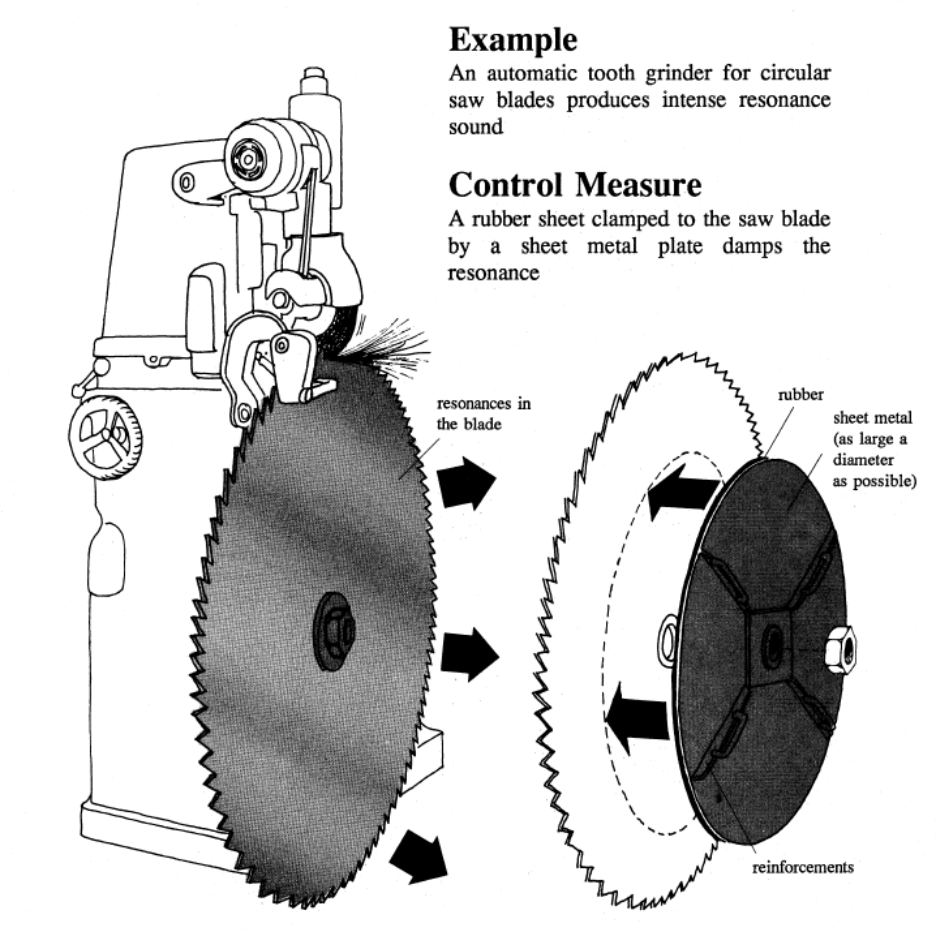

Application to metal working

B8 – Sound from Vibrating Plates – Resonance

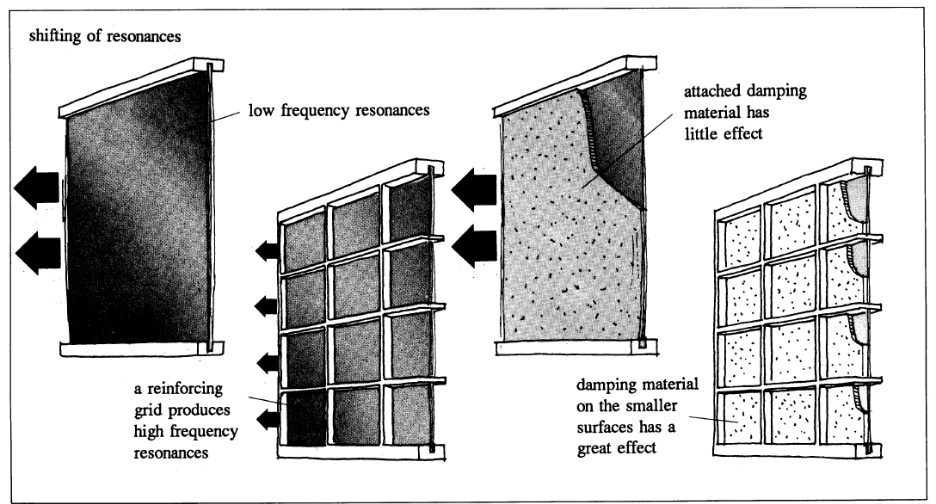

RESONANCE SHIFTED TO HIGHER FREQUENCY IS MORE EASILY DAMPED

Large vibrating plates often have low frequency resonances which can be difficult to damp.  If a plate is stiffened, the resonances are shifted to higher frequencies which can be more easily damped.

Principle

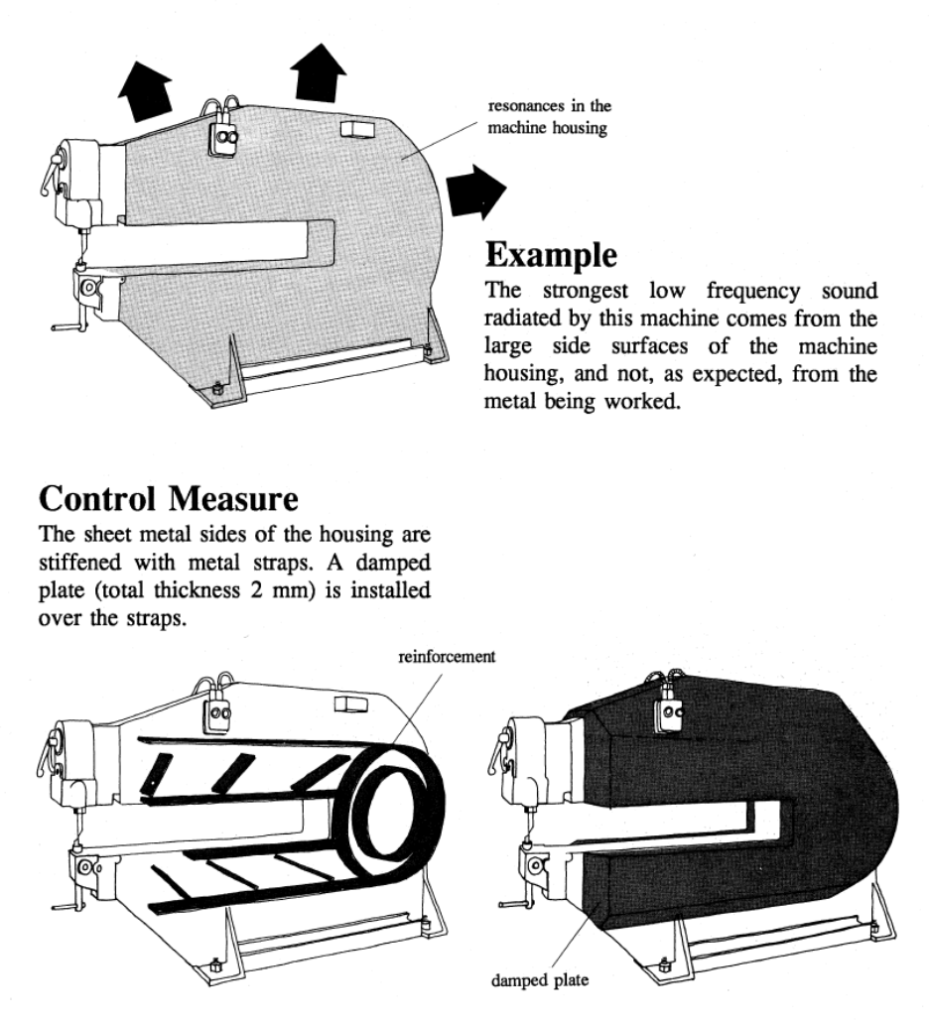

Application to a machine housing
